Thermal Evaporator-Crystallizer
The DESALT VTR series evaporator-crystallizer is designed to treat scaling aqueous-based streams with a high solids content, such as saturated salt solutions. Its structural design allows for the production of a concentrated product that is as dry as possible.
It is available in versions with and without a condensation section. In the non-condensing version, the generated vapour is released directly into the atmosphere. When the crystallizer is equipped with a condensation section, condensation is carried out by supplying cooling water, allowing water recovery.
The standard equipment is designed to process 10 000 kg/day. If capacity expansion is required, multiple units can be integrated in parallel, sharing the structure and the electrical control panel.
The operation of the equipment is fully automatic - 24 hours a day.
Main features
- Technology: Evaporation with thermal energy
- Single/Multi-Effect: Single-Effect
- Thermal Energy for Evaporation: Saturated steam
- Thermal Energy for Condensation: Cooling water
- Evaporation Temperature: ≈ 100 °C
- Evaporation Vessel: Vertical conical bottom
- Droplet Separator: Cyclon separator
- Heat Exchanger for Heating: External Jacket
- Control Unit*: PLC Siemens with HMI touch screen
- Protection: IP54
- Electricity Supply**: 400 V III + PE 50 Hz
- Standard Manufacturing Material: 1.4401/1.4404 (AISI 316L/Duplex)
- Special Anti-corrosion Manufacturing Material***: 1.4410 (Superduplex 2507)
* Different PLC manufacturer available on request
** Different voltage supply available on request
*** Consult other available material options

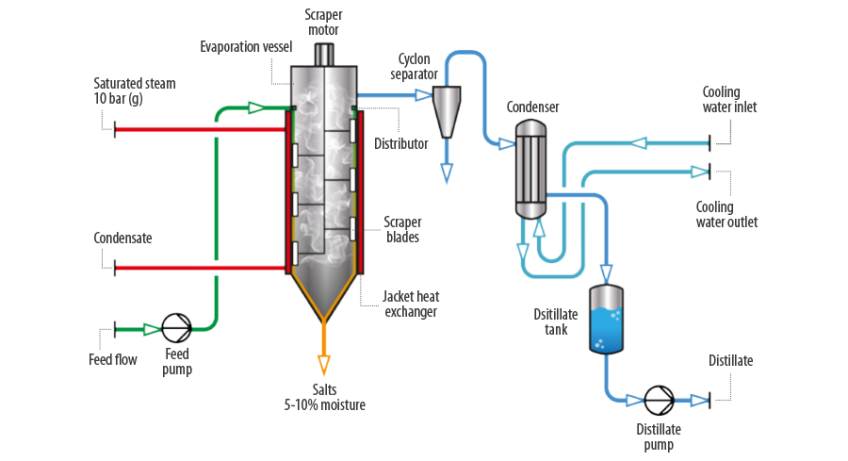

Diagram
Technical specs
| Parameter | Unit | 10000 |
|---|---|---|
| Capacity* | kg/day | 10000 |
| Electricity Consumption | kWh | 5,5 |
| Thermal Energy for Evaporation | kWht | 331 |
| Thermal Energy for Condensation | kWht | 290 |
| Length | mm | 5526 |
| Width | mm | 5526 |
| Height | mm | 9385 |
